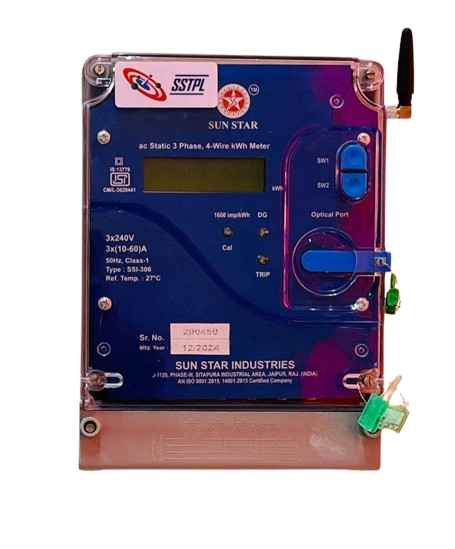

LoRa® enabled Smart Energy Meter

We are autorised channel partner of SSTPL (Sehaj Synergy Technologies Private Limited) for Smart Energy meter

The LoRa interface of the meters ensures a reliable and continuous connection to the gateway by constantly adjusting parameters for optimal sending and receiving. This allows the energy measurement device, based on LoRaWAN technology, to monitor and record electric energy usage in real time with unwavering dependability. Thanks to its Class C device capabilities, the energy meter can be accessed and utilized at anytime, anywhere.

  • Current range: (10-60A)*3 & Voltage rating: 240V*3

  • LoRa based on SX1262 & MCU STM32

  • Meter constant: 3200 imp/KWh

  • Class: 1 / Type: A.C.1 phase & 3 phase, 2 wire

  • Compliance: IS13779

  • RF output power: Up to 22 dBm & Rx sensitivity: -137 dBm

  • Measure Electrical parameters such as Voltage, Current, Frequency, Power Factor, KWh including EB/DG reading, Tariff recharge, Overload detection, Relay ON/OFF etc.

  • Measure the electricity consumption for domestic areas like homes, shops etc.

  • Prepaid Metering with Remote Control operations
